Product Details:
|
| Rated Power: | 3W | Push-button: | 1 |
|---|---|---|---|
| Camera: | 1920*1080@20fps, 1280*720@25fps | Network Interface: | 10/100Mbps,PoE IEEE802.3at |
| Power Input:: | PoE IEEE802.3at Or DC12V-2A | Casing: | Surface-treated Steel |
| Color: | Silver | Weight: | 476g |
| Dimension: | 164*80*44mm | Mounting Method: | Wall Mounted |
| High Light: | 3W IP Video Intercom,HD Camera IP Video Intercom,Single Button Security Intercom System |
||

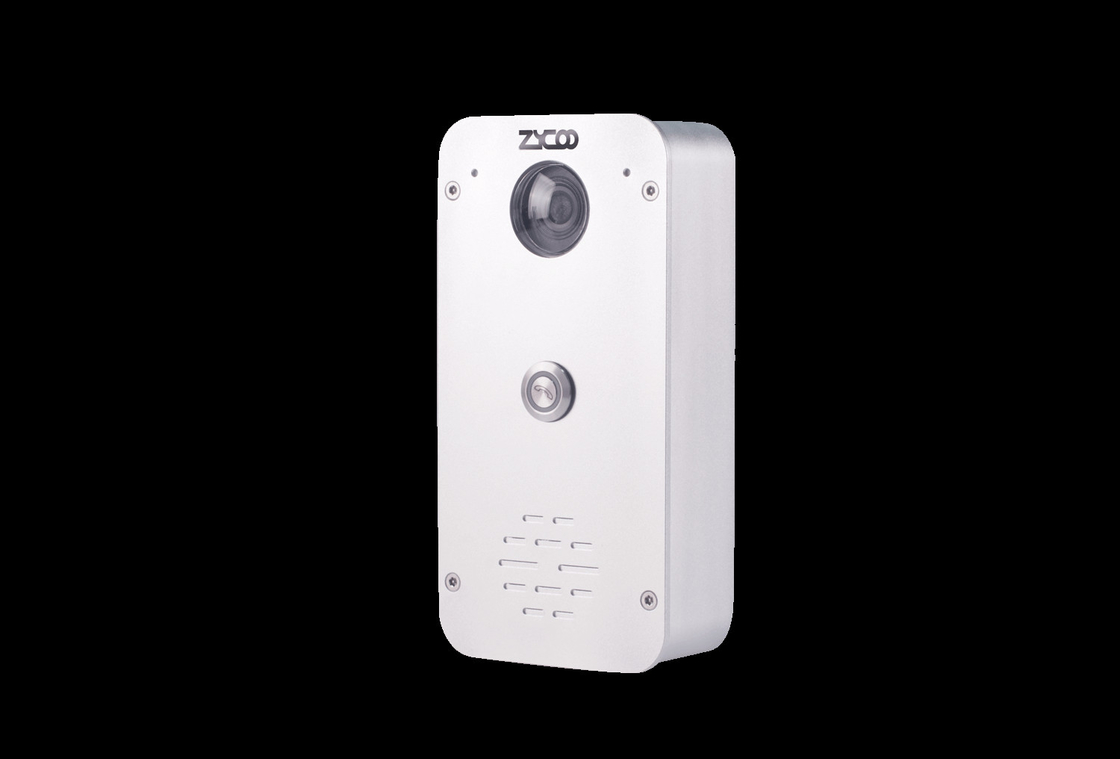

ZYCOO SIP Safety Intercom IV03 is a compact PoE and SIP-enabled intercom device equipped with a PTT (Press to Talk) button. IV03 is mainly used for video intercom but it can also be linked with the external IP cameras for video linkage purposes. IV03 can be easily integrated with any SIP server for full-duplex communication. Additionally, access control is enabled on the IV03.
Specifications
| Speaker | |
|---|---|
|
Sensitivity |
90±3dB |
|
Distortion |
<1%,1KHz 1W/1M |
|
Rated Power |
3W |
|
Maximum power |
4W |
|
Frequency Range |
630Hz – 4.5KHz |
|
Acoustics |
Mono |
| Audio & Video | |
|---|---|
|
Audio Codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Music Streaming |
MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
|
Camera |
1920*1080@20fps, 1280*720@25fps |
| Network | |
|---|---|
|
Network Interface |
10/100Mbps,PoE IEEE802.3at |
|
Protocols |
SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Door Control | |
|---|---|
| Interface |
NO/NC Contacts, Max AC 125V-1A/DC 60V-1A |
|
Mechanical |
|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE IEEE802.3at or DC12V2A |
|
Casing |
Surface-treated steel |
|
Color |
Silver |
|
Weight |
476g |
|
Dimension |
164*80*44mm |
|
Mounting method |
Wall mounted |
| Environmental | |
|---|---|
|
Installation environment |
Indoor/Outdoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
