Product Details:
|
| Power Input: | DC 12V-3A Or PoE IEEE 802.3at | Ethernet: | ETH0+ETH1, 10/100Mbps, ETH0 With PoE IEEE 802.3at Enabled |
|---|---|---|---|
| Call Button: | Support 2 Call Buttons | Digital Level Output: | N/A |
| Digital Level Input: | 5V Max | Dry Contact: | NO/NC Contacts, Max AC 125V-1A, DC 60V-1A |
| Weight: | 303g | Dimension: | 153*76*33mm |
| Working Environment: | -20°C ~ +50°C | Storage Environment: | -40°C ~ +75°C |
| High Light: | NC Contacts SIP Paging Gateway,NO Contacts SIP Paging Gateway,SIP Paging Gateway EN 55035:2017 |
||

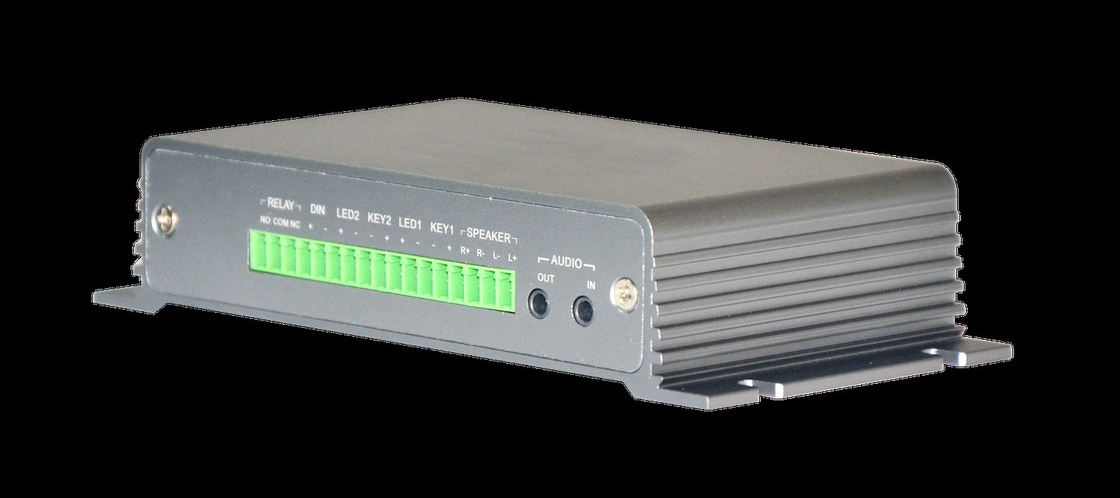

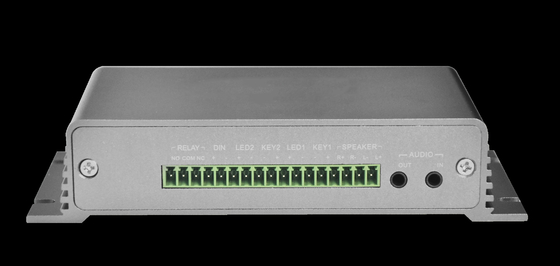

SIP-enabled Zone Paging Controller Gateway
ZYCOO X10 SIP paging gateway is a SIP-enabled multifunctional IP audio device dedicated to industry users. It can convert voice streams from a SIP paging system or IP PBX system to analog sounds for background music, public addresses, intercom, etc. Based on the compact hardware design, open standard SIP protocol support, rich functionality, and high performance. Industry users can customize the X10 SIP paging gateway into any desired form of intercom devices or paging speakers, which can be widely used for smart and safe city applications to increase the efficiency of communication and information sharing, and as a result, to improve public safety and citizen welfare.
Specifications
| Interfaces | |
| Amplifier Output |
2x10W, 8Ω (4 pins) |
| Headset Output |
3.5mm Jack |
| Microphone |
3.5mm Jack |
| Call button | Support 2 call buttons (switch button) |
| Call button LED | Support 2 call button LED indicators |
| Digital level output | N/A |
|
Digital level input |
5V Max |
|
Dry Contact |
NO/NC contacts, max AC 125V-1A, DC 60V-1A |
|
Power Input |
DC 12V-3A Jack |
|
Volume Control |
VOL+ and VOL-, press both to announce IP address |
|
Ethernet |
ETH0+ETH1, 10/100Mbps, ETH0 with PoE IEEE 802.3at enabled |
| Audio | |
|---|---|
|
Audio Codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Music Streaming |
MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
| Protocols | |
|---|---|
|
Protocols |
SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
|
Mechanical |
|
|
Processor |
ARM Cortex-A35 |
|
RAM |
128MB DDR3 |
|
Storage |
128MB SLC Flash |
|
Color |
Gray |
|
Weight |
303g |
|
Dimension |
153*76*33mm |
| Environmental | |
|---|---|
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
QA
Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com
