Product Details:
|
| Rated Power: | 8Ω 15W | Color: | White, Black |
|---|---|---|---|
| Casing: | UL94-V0 Rated ABS Material, Thickened, Flame Resistant | Grille: | Surface-treated Metal Mesh Plate |
| Coverage Pattern: | 90°H 90°V 30m2 | Max SPL: | 100dB |
| Sensitivity: | 85dB/1m/1W | Weight: | 3.29KG (7.25lb) |
| Dimension: | 240mm(H) × 180mm(W) × 150mm(D) | Mounting Method: | Wall Mounted |
| High Light: | ABS Casing Cabinet Loudspeaker,Cabinet Loudspeaker Sip,sip loudspeaker PoE+ |
||

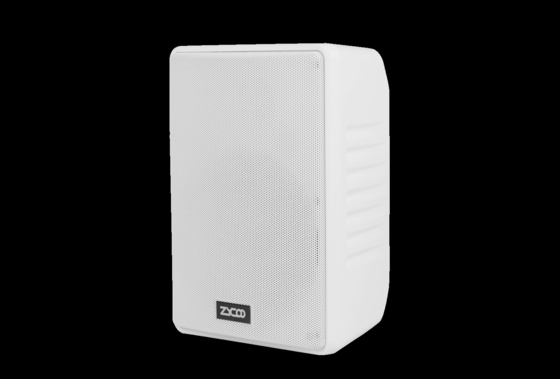

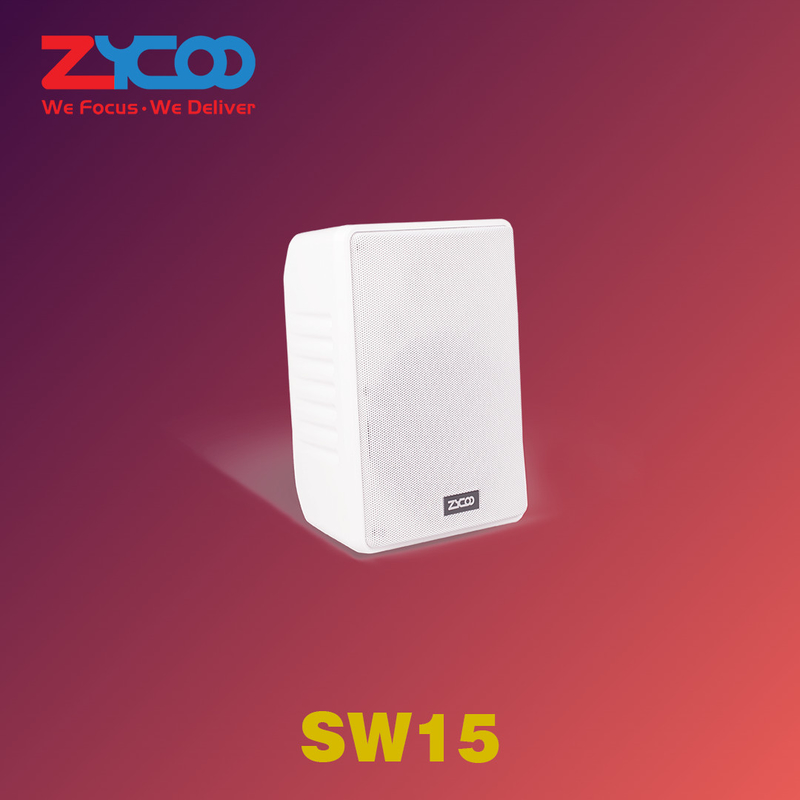

ZYCOO SW15 is a high-performance SIP-enabled cabinet speaker which can be used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience. And it’s designed for applications where voice coverage is of primary concern.
Features
Standard PoE (IEEE 802.3at) support, simple and easy installation with a single network cable. The external power
supply can be used if required.
Support Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while the devices use
under the same local network.
Built-in Class-D amplifier with local and server controlled volume output level, SW15 guarantees the full and consistent
coverage and audio comfort and the flab.
SW15 supports three lines SIP accounts, in which users may register the endpoint in more than one system for achieving
different functionality purposes.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
5.25" woofer unit + 1.5" tweeter unit |
|
Sensitivity |
85dB/1m/1W |
|
Max sound pressure level |
100dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 15W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 50°V 30m^2 |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE IEEE802.3at or DC24V-2A |
|
Casing |
UL94-V0 rated ABS material, thickened, flame resistant |
|
Grille |
Surface-treated metal mesh plate |
|
Color |
White, Black |
|
Weight |
3.29KG (7.25lb) |
|
Dimension |
240mm(H) × 180mm(W) × 150mm(D) |
|
Mounting method |
Wall mounted |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
