Product Details:
|
| Rated Power: | 8Ω 10W | Flasher: | 2 |
|---|---|---|---|
| Camera: | 1 | Clock Display: | 1 |
| Color: | White | Casing: | Cold Rolled Steel Finished In Textured White Epoxy |
| Coverage Pattern: | 90°H 50°V 30m^2 | Max Sound Pressure Level: | 101dB |
| Sensitivity: | 91dB/1m/1W | Weight: | 3.15kg (6.95lb) |
| Dimension: | 300*300*65mm | Mounting Method: | Wall Mounted |
| High Light: | Square Ip Based Pa System,Ip Based Pa System Compact,Ip Based Pa System LED Flashers |
||

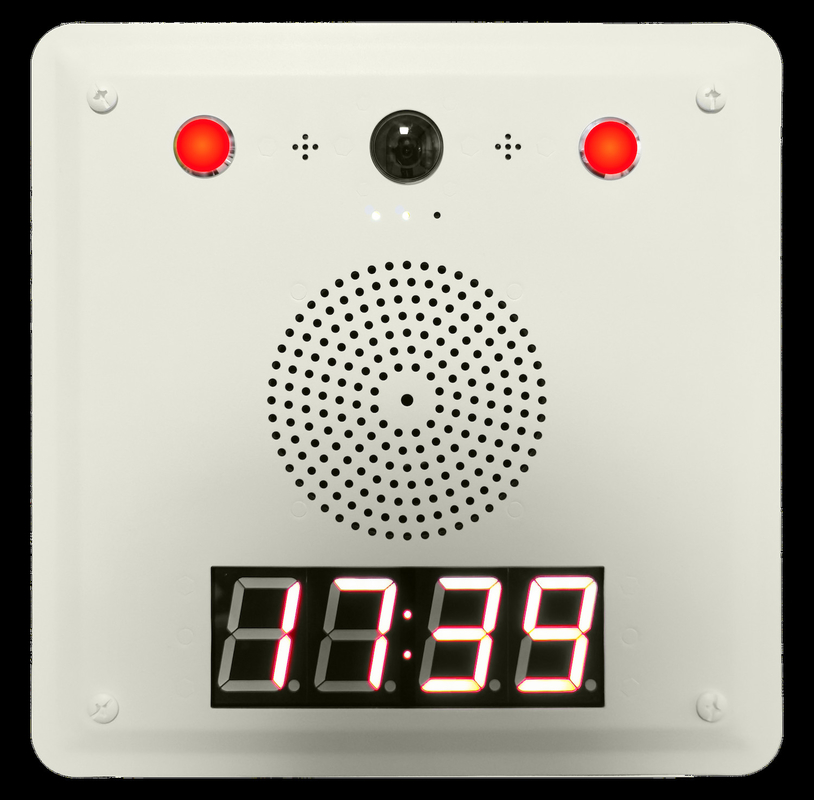

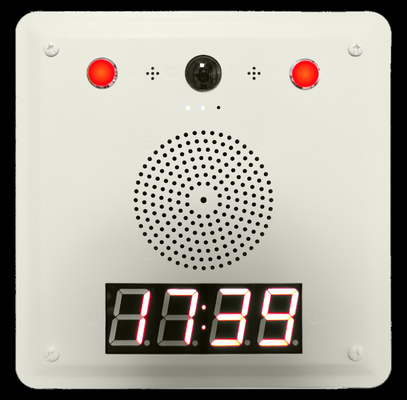

Square Two-way communication IP Speaker w/ Flashers Camera and Clock Flush-mounted for indoor use
ZYCOO Network Square Speaker SQ10-CF Compact is a comprehensive, high-performance, flush-mounted SIP-enabled speaker. The LED flashers located on the top surface of the speaker can be used to alert room occupants of an incoming audio message or emergency notices. With the built-in HD camera and built-in microphone, the operators can detect the indoor environment and delivery two-way communication at any time, anywhere. The LED displays time and eliminates the need for a separate clock system, perfect to use in scenarios like classrooms, libraries, and offices.
Specifications
| Speaker | |
|---|---|
|
Speaker Size |
4.5'' |
|
Sensitivity |
91dB/1m/1W |
|
Max sound pressure level |
101dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 10W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 50°V 30m² |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE+ or External 24V DC |
|
Casing |
Cold rolled steel finished in textured white epoxy |
|
Color |
White |
|
Weight |
3.15kg(6.95lb) |
|
Dimension |
300*300*65mm |
|
Mounting method |
Wall-mounted |
|
SYS Light Status |
On/Off/Flash |
|
PWR Light Status |
On/Off/Flash |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
