Product Details:
|
| Rated Power: | 8Ω 15W | Color: | White, Black |
|---|---|---|---|
| Casing: | UL94-V0 Rated ABS Material, Thickened, Flame Resistant | Grille: | Surface-treated Metal Mesh Plate |
| Coverage Pattern: | 90°H 90°V 30m2 | Max SPL: | 100dB |
| Sensitivity: | 85dB/1m/1W | Weight: | 3.29KG (7.25lb) |
| Dimension: | 240mm(H) × 180mm(W) × 150mm(D) | Mounting Method: | Wall Mounted |
| High Light: | IP Network Speaker 128MB RAM,Cabinet IP Network Speaker,poe ip speaker 128MB RAM |
||

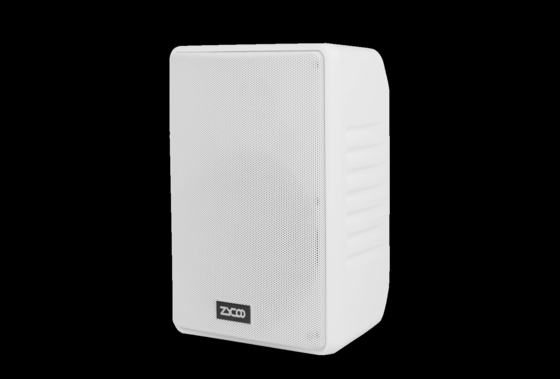

Indoor Cabinet IP Speaker with PoE supported
ZYCOO SW15 is a high-performance SIP-enabled cabinet speaker which can be used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience. And it’s designed for applications where voice coverage is of primary concern.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
5.25" woofer unit + 1.5" tweeter unit |
|
Sensitivity |
85dB/1m/1W |
|
Max sound pressure level |
100dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 15W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 50°V 30m^2 |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE IEEE802.3at or DC24V-2A |
|
Casing |
UL94-V0 rated ABS material, thickened, flame resistant |
|
Grille |
Surface-treated metal mesh plate |
|
Color |
White, Black |
|
Weight |
3.29KG (7.25lb) |
|
Dimension |
240mm(H) × 180mm(W) × 150mm(D) |
|
Mounting method |
Wall mounted |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
