Product Details:
|
| Rated Power: | 3W | Push-button: | 1 |
|---|---|---|---|
| Network Interface: | 10/100Mbps,PoE IEEE802.3at | Power Input:: | PoE IEEE802.3at Or DC12V-2A |
| Casing: | Surface-treated Steel | Color: | Silver |
| Weight: | 476g | Dimension: | 164*80*44mm |
| Mounting Method: | Wall Mounted | ||
| High Light: | IP Cameras Sip Outdoor Intercom,Sip Outdoor Intercom PTT,Sip Outdoor Intercom Press To Talk |
||
Single Button Safety Intercom Support PoE

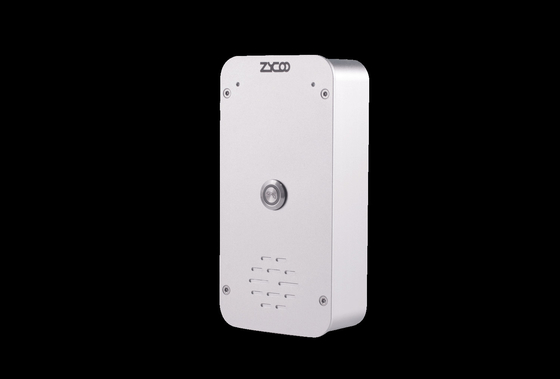

ZYCOO SIP Safety Intercom IA03 is a compact PoE and SIP-enabled intercom device equipped with a PTT (Press to Talk) button. IA03 is mainly used for audio intercom but it can also be linked with the external IP cameras for video linkage purposes. IA03 can be easily integrated with any SIP server for full-duplex communication. Additionally, access control is enabled on the IA03.
Specifications
| Speaker | |
|---|---|
|
Sensitivity |
90±3dB |
|
Distortion |
<1%,1KHz 1W/1M |
|
Rated Power |
3W |
|
Maximum power |
4W |
|
Frequency Range |
630Hz – 4.5KHz |
|
Acoustics |
Mono |
| Audio & Video | |
|---|---|
|
Audio Codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Music Streaming |
MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
|
Camera |
1920*1080@20fps, 1280*720@25fps |
| Network | |
|---|---|
|
Network Interface |
10/100Mbps,PoE IEEE802.3at |
|
Protocols |
SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Door Control | |
|---|---|
| Interface |
NO/NC Contacts, Max AC 125V-1A/DC 60V-1A |
|
Mechanical |
|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE IEEE802.3at or DC12V2A |
|
Casing |
Surface-treated steel |
|
Color |
Silver |
|
Weight |
476g |
|
Dimension |
164*80*44mm |
|
Mounting method |
Wall mounted |
| Environmental | |
|---|---|
|
Installation environment |
Indoor/Outdoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
