Product Details:
|
| Rated Power: | 8Ω 10W | Camera: | HD |
|---|---|---|---|
| Color: | White | Casing: | Cold Rolled Steel Finished In Textured White Epoxy |
| Coverage Pattern: | 90°H 50°V 30m^2 | Max Sound Pressure Level: | 101dB |
| Sensitivity: | 91dB/1m/1W | Weight: | 3.15kg (6.95lb) |
| Dimension: | 300*300*65mm | Mounting Method: | Wall Surface Mounted |
| High Light: | Mono Acoustics Poe Speaker System,Poe Speaker System Wall Surface Mounted |
||

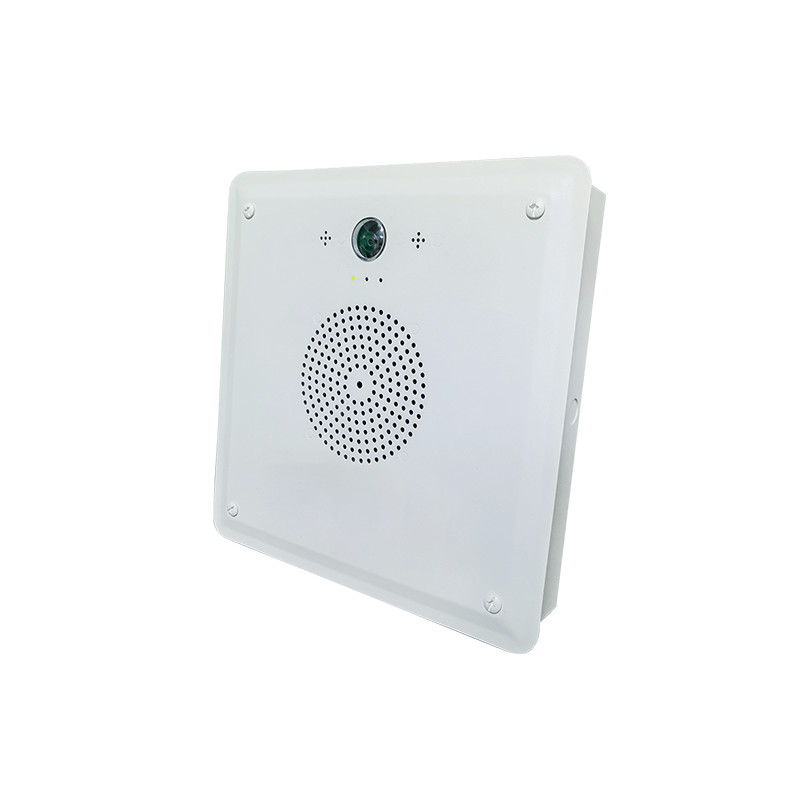

ZYCOO Network Square Speaker SQ10-VF Vista is a comprehensive, high-performance, flush-mounted SIP-enabled speaker. With the built-in HD camera and built-in microphone, the operators can detect the indoor environment and deliver two-way communication at any time, anywhere. Perfect to use in scenarios like terminal stations, cafeterias, and offices.
Specifications
| Speaker | |
|---|---|
|
Speaker Size |
4.5'' |
|
Sensitivity |
91dB/1m/1W |
|
Max sound pressure level |
101dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 10W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 50°V 30m² |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE+ or External 24V DC |
|
Casing |
Cold rolled steel finished in textured white epoxy |
|
Color |
White |
|
Weight |
3.15kg(6.95lb) |
|
Dimension |
300*300*65mm |
|
Mounting method |
Wall-mounted |
|
SYS Light Status |
On/Off/Flash |
|
PWR Light Status |
On/Off/Flash |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
