Product Details:
|
| Color: | White | IP Rating: | IP65 |
|---|---|---|---|
| Rated Power: | 8Ω 50W | Casing: | Aluminum, White-color Rust Preventive Coating |
| Coverage Pattern: | 135° 50m, Maximum Effective Distance 70m | Max Sound Pressure Level: | 105dB |
| Sensitivity: | 85dB/1m/1W | Weight: | 4.5KG |
| Dimension: | 101.6*100*470mm | Mounting Method: | Wall/pole Mounted |
| High Light: | 50W IP Column Array Speakers,Column Array Speakers All Purpose,4G Module column line array speakers |
||

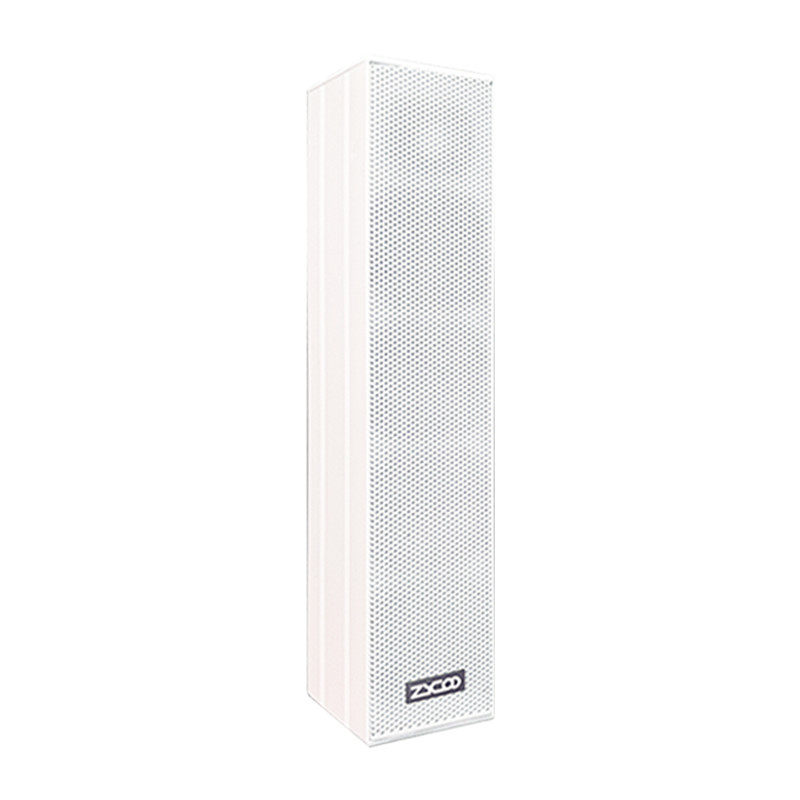

ZYCOO SL50 is a high-performance SIP-enabled column speaker used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. SL50 is equipped with 4 woofer drive units and 1 tweeter drive unit. It has high sensitivity and capacity, giving clear and rich saturation, whether SIP-based propaganda broadcasting or background music playing. SL50 can perfectly analyze various sound effects of human voice and music.
SL50 is a Dual-speaker driver units design, low-frequency woofer driver unit, and high-frequency tweeter
driver unit. It provides premium sound quality, enhances the audience experience.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
Four 3.25'' woofer units + one 25ø tweeter unit |
|
Sensitivity |
85dB/1m/1W |
|
Max sound pressure level |
105dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 50W |
|
Frequency range |
100Hz – 20KHz |
|
Coverage Pattern |
135° 50m, maximum effective distance 70m |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
DC36V |
|
Casing |
Aluminum, white-color rust preventive coating |
|
IP Rating |
IP65 |
|
Color |
White |
|
Weight |
4.5kg |
|
Dimension |
101.6*100*470mm |
|
Mounting method |
Wall/pole mounted |
| Environmental | |
|---|---|
|
Installation environment |
Indoor/Outdoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
QA
Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com
