Product Details:
|
| Rated Power: | 8Ω 10W | Color: | White |
|---|---|---|---|
| Casing: | Cold Rolled Steel Finished In Textured White Epoxy | Coverage Pattern: | 90°H 50°V 30m^2 |
| Max Sound Pressure Level: | 101dB | Sensitivity: | 91dB/1m/1W |
| Weight: | 3.15kg (6.95lb) | Dimension: | 280*280*65mm |
| Mounting Method: | Wall Surface-mounted | ||
| High Light: | Talkback Ip Based Speaker,Ip Based Speaker Surface Mount,ip based pa system Two Way Communication |
||

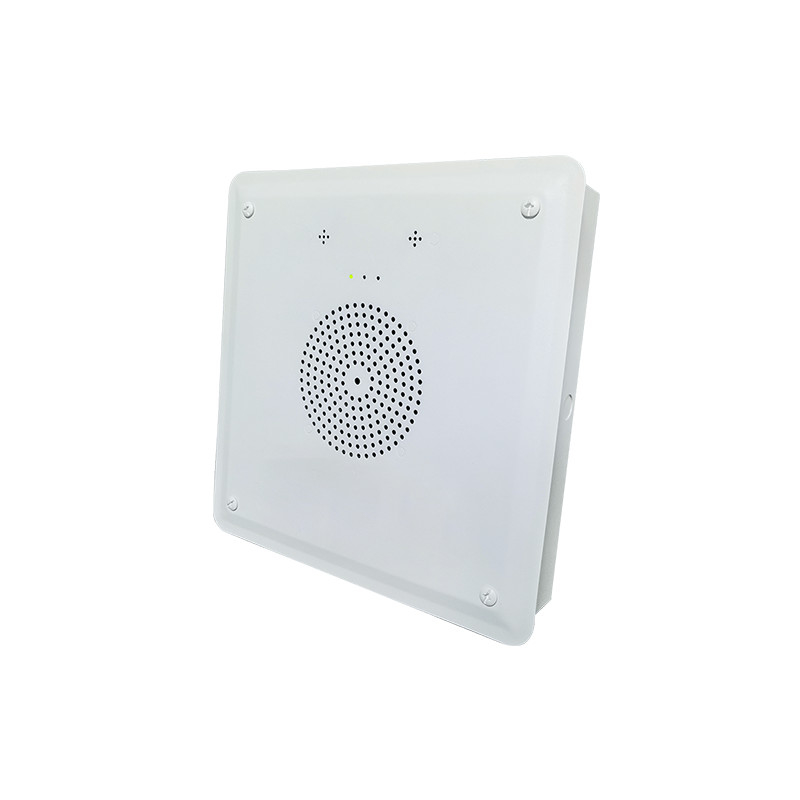

SQ10-B Indoor Use Talkback Surface Mount On-Wall IP Square Speaker PoE Supported
ZYCOO Network Square Speaker SQ10-B Basic is a comprehensive, high-performance, surface-mounted SIP-enabled speaker. With the built-in microphone, the operators can deliver two-way communication at any time, anywhere. Perfect to use in scenarios like classrooms, cafeterias, and offices.
Peripheral Integration
With the support of peripheral integration, the SQ10 can connect with strobes, call
buttons, volume controllers, external LED/LCD monitors, door magnetism, etc.
Specifications
| Speaker | |
|---|---|
|
Speaker Size |
4.5'' |
|
Sensitivity |
91dB/1m/1W |
|
Max sound pressure level |
101dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 10W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 50°V 30m² |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE+ or External 24V DC |
|
Casing |
Cold rolled steel finished in textured white epoxy |
|
Color |
White |
|
Weight |
3.15kg(6.95lb) |
|
Dimension |
280*280*65mm |
|
Mounting method |
Wall-mounted |
|
SYS Light Status |
On/Off/Flash |
|
PWR Light Status |
On/Off/Flash |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
QA
Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com
