Product Details:
|
| Dimensions: | 88.5 X 132 Mm | Temperature: | 0°C ~ 40°C |
|---|---|---|---|
| Humidity: | 5% ~ 95% Non-Condensing | ||
| High Light: | UMTS 900MHz PBX Telephony,PBX Telephony 88.5 X 132 Mm,2WCDMA Voip Modules |
||

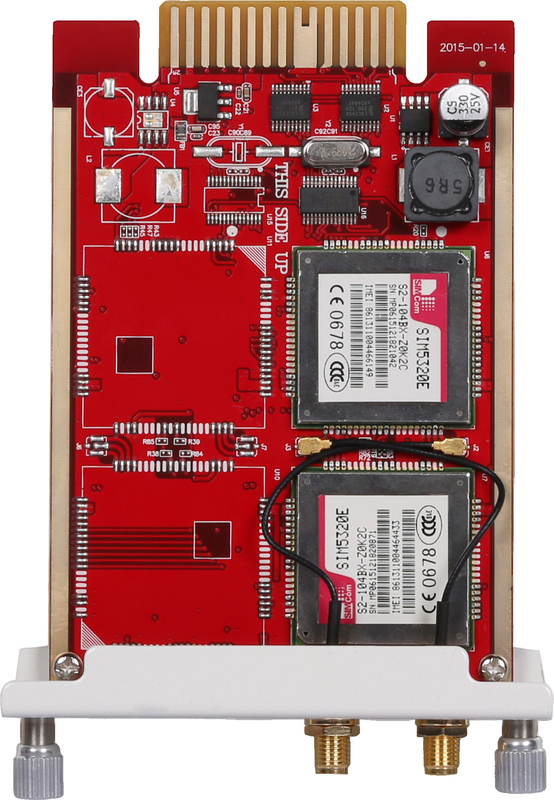

2WCDMA Telephony Trunk Interface Module
Designed with the SIM5320 series module for the global market, SIM5320 is Dual-Band WCDMA and Quad-band GSM engine that works on frequencies UMTS 850MHz, UMTS 900MHz, UMTS 1900MHz, UMTS 2100MHz, GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.
|
Model No. |
2WCDMA |
|
Number of channels per module |
2 |
|
External antennas |
2 |
|
SIM Cards |
2 total |
|
External power supply required |
No |
|
Interoperable modules |
4FXO |
|
Supported protocols |
Voice (2G/3G) |
|
Accessibility |
Through Asterisk 1.8x |
