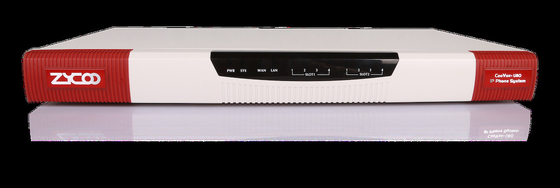

2.41GHz Dual Core PBX Telephony Medium / Large Business Voip Systems

2.41GHz Dual Core PBX Telephony Medium / Large Business Voip Systems
2.41GHz Dual Core PBX Telephony Medium / Large Business Voip Systems

Large Image :  2.41GHz Dual Core PBX Telephony Medium / Large Business Voip Systems

Product Details:
Place of Origin: China
Brand Name: ZYCOO
Certification: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A
Model Number: U80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Zycoo Co., Ltd.
Delivery Time: 5-10 business days
Payment Terms: L/C, T/T, D/P
Contact Now

2.41GHz Dual Core PBX Telephony Medium / Large Business Voip Systems

Description
Extensions: 200 Simultaneous Calls: 60
Telephony Interfaces: 8xFXO/FXS/GSM/WCDMA, 2xE1/T1, 4xBRI Interfaces CPU: 2.41GHz Dual-core Intel Processor
RAM: 2GB DDR3L Storage: 16GB EMMC
USB: 2 (Supported File System: FAT16,FAT32,EXTFAT,NTFS,EXT3,EXT4) Ethernet Interface: WAN, LAN (10/100Mbps)
Power: AC 100-240V, Max. 1.5A Dimension: 440x222x44mm
High Light:

2.41GHz PBX Telephony

,

Medium Business Voip Systems

,

Large Business Voip Systems



Medium/Large Business VoIP Business Phone Systems IPPBX - U80

CooVox-U80 is a next-generation IPPBX system designed for medium to large enterprises. It is a truly powerful hardware platform and supports PSTN/GSM/WCDMA trunks, ISDN E1/T1 and BRI digital trunk lines. Through its innovative software features, CooVox-U80 allows for enterprise-grade unified VoIP communications.
CooVox-U80 is suitable for enterprises requiring 100 to 200 extensions and a maximum of 60 concurrent calls. It’s an affordable, scalable, interoperable, secure and reliable choice for you to build your own innovative VoIP solutions.


Endpoints Provisioning
Quick and simple deployment of endpoint devices using PNP and Quick Register Code. CooCall APP can be provisioned by
scanning a QR code.


Hardware Specifications



Items

Specifications

Telephony Interfaces

8xFXO/FXS/GSM/WCDMA, 2xE1/T1, 4xBRI Interfaces

CPU

2.41GHz Dual-core Intel Processor

SDRAM

2GB DDR3L

Storage

16GB EMMC

USB (Extended Storage Supported)

2 (Supported File System: FAT16, FAT32, EXTFAT, NTFS, EXT3, EXT4)

Ethernet Interface

WAN, LAN (10/100Mbps)

Power

AC 100-240V, Max. 1.5A

Dimension

440x222x44mm



Software Specifications

System Capacity

✓ 200 Extensions
✓ 60 Simultaneous Calls
✓ 60 Conference Attendees
✓ 150hrs Recording/Voicemail (Internal Storage)
✓ 1-12 EX16S Deployment (Recommended)

✓ Unlimited IVR Levels
✓ 100 SIP/IMS Trunks (Max)
✓ 500000 CDR History
✓ 10000 Phonebook Contacts
✓ 50 Paging Members

Protocols & Codecs

✓ SIP(RFC3261), IAX2
✓ DTMF(RFC4733, SIPINFO, In-Band)
✓ Transport Protocols: UDP, TCP, TLS, SRTP
✓ Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
✓ Video Codecs: VP8, H.264, H.263+, H.263, H.261
✓ Audio Codecs: Opus, G.722, G.711(a-law, u-law), G.729, G.726, GSM, SPEEX, AMR, AMR-WB

Telephony Features

✓ Call Queue
✓ IVR (Multi-layer)
✓ Ring Group
✓ Caller ID
✓ Call Forward
✓ Call Spy
✓ Call Transfer
✓ Video Call
✓ Call Pickup
✓ 3-way Calling
✓ Call Parking
✓ Conference Call
✓ Call Waiting
✓ Follow Me
✓ Speed Dial
✓ Call Detailed Records (CDR)

✓ Call Back

✓ DISA
✓ Smart DID
✓ Blacklist
✓ Voicemail
✓ Wakeup Call
✓ PIN Code
✓ Do Not Disturb
✓ Switch Call

✓ Time Conditions
✓ Paging & Intercom
✓ One Number Stations
✓ Music On Ringback
✓ Distinctive Ringtone
✓ Auto Call Recording
✓ One Touch Recording

Feature Highlights

✓ Quick Installation Guide
✓ Softphone APP Auto Provisioning (QR Code Scan)
✓ IP Phone Auto Provisioning (PNP, Quick Register Code)
✓ LDAP Phonebook Auto Configure (H81, H83)
✓ EX16S Auto Provisioning

✓ SIP Proxy (NAT Traversal)
✓ Voicemail to Email
✓ Fax to Email
✓ Multilingual Web UI
✓ Multilingual Voice Prompts

Multi-level User Administration

✓ Admin user: All Privileges.
✓ Billing user
✓ Operator user: Extensions, faxes, CDR, recordings, etc.
✓ Conference manager
✓ Extension user: WebRTC, recordings, voicemails, call logs, etc.

Security

✓ Firewall based on iptables
✓ IP Black/White List
✓ Intrusion auto-detection and prevention
✓ Extension Permit IP
✓ Geo-IP (Security policy based on IP address geographical location)

Network Features

✓ Network (WAN): Static IP, DHCP, PPPoE

✓ DDNS (Dynamic Domain Name Server)
✓ VLAN (WAN & LAN Interface)
✓ Virtual IP
✓ Local Domain Name Services
✓ SIP Proxy (NAT Traversal)

✓ VPN: PPTP, OpenVPN, IPSec, L2TP (Server and Client)
✓ Static Routing
✓ DHCP (Server and Client)




2.41GHz Dual Core PBX Telephony Medium / Large Business Voip Systems 0

QA



Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.

Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.

Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.

Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.

Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com






WHY CHOOSE US



  • ZYCOO, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that mainly serve the SME market.



  • With the deployment of distribution channels and branch offices in Czech Republic and UAE, ZYCOO products and solutions have been deployed in more than 100 countries and trusted by over 100,000 satisfied customers. Customers can enjoy direct sales, tech-support, training, and after-sale service while using ZYCOO products and solutions.



  • Besides branded product, ZYCOO also offers various types of embedded hardware boards for ODM and OEM, as well as software modification or white-label. ZYCOO always keeps pace with the innovative VOIP technology and provides cost-effective products and services to customers.
