Compact PBX Telephony 32 Extensions VoIP Business Phone Systems

Compact PBX Telephony 32 Extensions VoIP Business Phone Systems
Compact PBX Telephony 32 Extensions VoIP Business Phone Systems Compact PBX Telephony 32 Extensions VoIP Business Phone Systems

Large Image :  Compact PBX Telephony 32 Extensions VoIP Business Phone Systems

Product Details:
Place of Origin: China
Brand Name: ZYCOO
Certification: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A
Model Number: U20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Zycoo Co., Ltd.
Delivery Time: 5-10 business days
Payment Terms: L/C, T/T, D/P
Contact Now

Compact PBX Telephony 32 Extensions VoIP Business Phone Systems

Description
Extensions: 32 Simultaneous Calls: 15
Telephony Interfaces: 2xRJ11 Interfaces (FXO/FXS); 1xGSM CPU: 1GHz ARMv7 Processor
SDRAM: 512MB DDR3 Storage: 16GB SD Card
USB: 1 Ethernet Interface: WAN, LAN (10/100Mbps)
Power: DC 12V, 1A Dimension: 170x116x30mm
High Light:

Compact PBX Telephony

,

PBX Telephony 32 Extensions

,

32 Extensions VoIP Business Phone Systems



Small Business VoIP Business Phone Systems IPPBX - U20

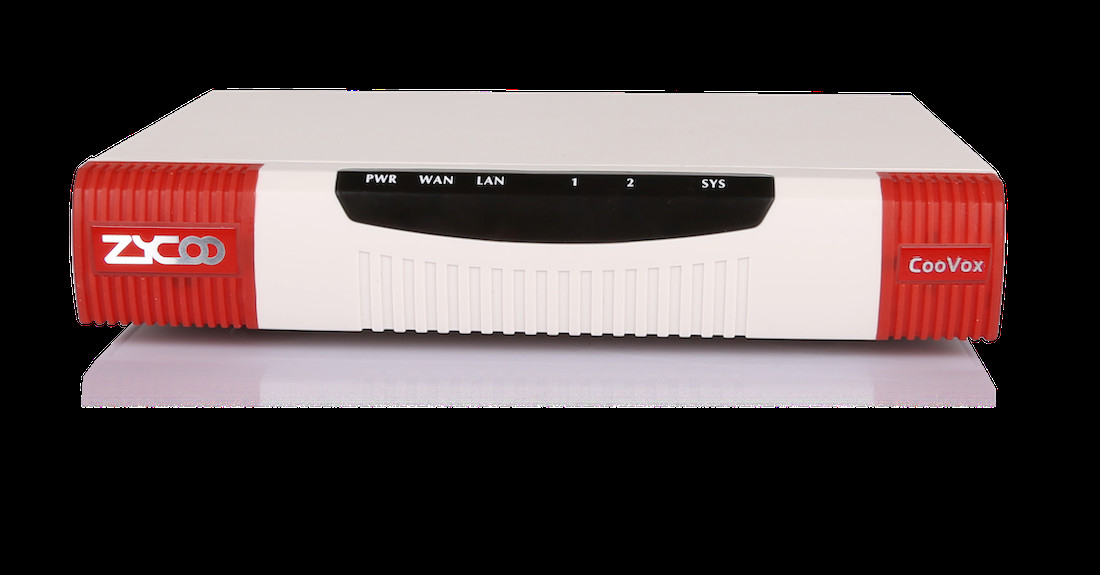

CooVox-U20 is a stylish, compact yet full-featured mini IPPBX system designed for small and micro firms/SOHOs. It is suitable for companies under 30 employees and has all the necessary functionality to fulfill their daily telephony needs. CooVox-U20 comes equipped with 2 analog ports and optionally a GSM interface, allowing companies the option to deliver inbound/outbound phone calls over PSTN/GSM/SIP Trunk/IMS.

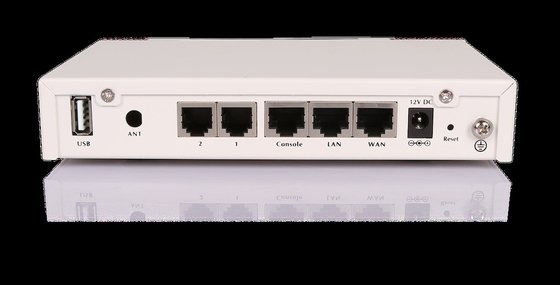

Hardware Specifications



Items

Specifications

Telephony Interfaces

2xRJ11 Interfaces (FXO/FXS); 1xGSM (Optional)

CPU

1GHz ARMv7 Processor

SDRAM

512MB DDR3

Storage

16GB SD Card

USB (Extended Storage Supported)

1 (Supported File System: FAT16,FAT32, EXTFAT, NTFS,EXT3,EXT4)

Ethernet Interface

WAN, LAN (10/100Mbps)

Power

DC 12V, 1A

Dimension

170x116x30 (Desktop-based)



Software Specifications

System Capacity

✓ 32 Extensions
✓ 15 Simultaneous Calls
✓ 15 Conference Attendees
✓ 150hrsRecording/Voicemail(InternalStorage)
✓ 1 or 2 EX16S Deployment (Recommended)

✓ Unlimited IVR Levels
✓ 20 SIP/IMS Trunks (Max)
✓ 500000 CDR History
✓ 10000PhonebookContacts
✓ 15 Paging Members

Protocols & Codecs

✓ SIP(RFC3261), IAX2
✓ DTMF(RFC4733, SIPINFO, In-Band)
✓ Transport Protocols: UDP, TCP, TLS, SRTP
✓ Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
✓ Video Codecs: VP8, H.264, H.263+, H.263, H.261
✓ Audio Codecs: Opus, G.722, G.711(a-law, u-law), G.729, G.726, GSM, SPEEX, AMR, AMR-WB

Telephony Features

✓ Call Queue
✓ IVR (Multi-layer)
✓ Ring Group
✓ Caller ID
✓ Call Forward
✓ Call Spy
✓ Call Transfer
✓ Video Call
✓ Call Pickup
✓ 3-way Calling
✓ Call Parking
✓ Conference Call
✓ Call Waiting
✓ Follow Me
✓ Speed Dial
✓ Call Detailed Records (CDR)

✓ Call Back

✓ DISA
✓ Smart DID
✓ Blacklist
✓ Voicemail
✓ Wakeup Call
✓ PIN Code
✓ Do Not Disturb
✓ Switch Call

✓ Time Conditions
✓ Paging & Intercom
✓ One Number Stations
✓ Music On Ringback
✓ Distinctive Ringtone
✓ Auto Call Recording
✓ One Touch Recording

Feature Highlights

✓ Quick Installation Guide
✓ Softphone APP Auto Provisioning (QR Code Scan)
✓ IP Phone Auto Provisioning (PNP, Quick Register Code)
✓ LDAP Phonebook Auto Configure (H81, H83)
✓ EX16S Auto Provisioning

✓ SIP Proxy (NAT Traversal)
✓ Voicemail to Email
✓ Fax to Email
✓ Multilingual Web UI
✓ Multilingual Voice Prompts

Multi-level User Administration

✓ Admin user: All Privileges.
✓ Billing user
✓ Operator user: Extensions, faxes, CDR, recordings, etc.
✓ Conference manager
✓ Extension user: WebRTC, recordings, voicemails, call logs, etc.

Security

✓ Firewall based on iptables
✓ IP Black/White List
✓ Intrusion auto-detection and prevention
✓ Extension Permit IP
✓ Geo-IP (Security policy based on IP address geographical location)

Network Features

✓ Network (WAN): Static IP, DHCP, PPPoE

✓ DDNS (Dynamic Domain Name Server)
✓ VLAN (WAN & LAN Interface)
✓ Virtual IP
✓ Local Domain Name Services
✓ SIP Proxy (NAT Traversal)

✓ VPN: PPTP, OpenVPN, IPSec, L2TP (Server and Client)
✓ Static Routing
✓ DHCP (Server and Client)




Compact PBX Telephony 32 Extensions VoIP Business Phone Systems 0

QA



Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com






WHY CHOOSE US



  • ZYCOO, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that mainly serve the SME market.



  • With the deployment of distribution channels and branch offices in Czech Republic and UAE, ZYCOO products and solutions have been deployed in more than 100 countries and trusted by over 100,000 satisfied customers. Customers can enjoy direct sales, tech-support, training, and after-sale service while using ZYCOO products and solutions.



  • Besides branded product, ZYCOO also offers various types of embedded hardware boards for ODM and OEM, as well as software modification or white-label. ZYCOO always keeps pace with the innovative VOIP technology and provides cost-effective products and services to customers.
