Product Details:
|
| Rated Power: | 8Ω 15W | Color: | White |
|---|---|---|---|
| Casing: | Surface-treated Steel | Coverage Pattern: | 90°H 90°V 30m^2 |
| Max Sound Pressure Level: | 100dB | Sensitivity: | 85dB/1m/1W |
| Weight: | 3.45KG (7.6lb) | Dimension: | φ240 X 210 Mm (7.2 X 6.3 In) |
| Mounting Method: | High Strength Anti-corrosion Clamps | ||
| High Light: | Steel SIP Ceiling Speaker,SIP Ceiling Speaker 70Hz,20KHz Flush Ceiling Speaker Mounts |
||

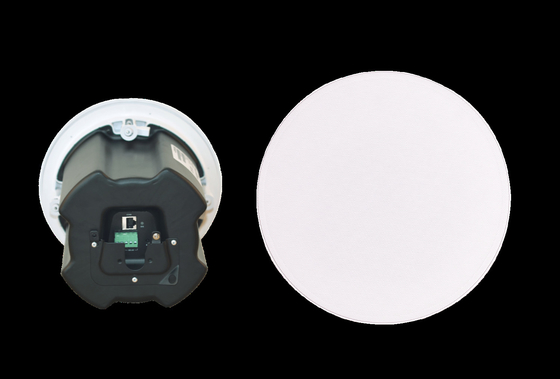

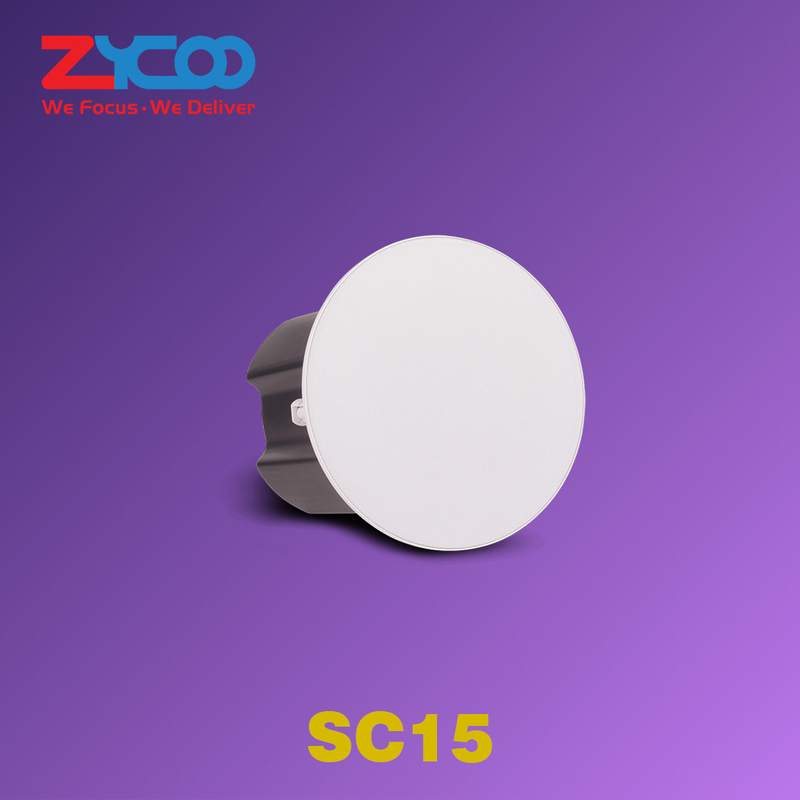

ZYCOO SC15 is a compact high-performance SIP-enabled ceiling speaker which can be used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience.
Built-in SIP support, can be integrated with ZYCOO IP Audio Center or third-party SIP server, SIP paging
using wideband G.722 codec which provides crystal clear HD voice.
Music playback through ZYCOO IP Audio Center using streamed media. HD MP3 audio files supported
for superior quality of background music.
Standard PoE (IEEE 802.3at) support, simple and easy installation with a single network cable. External
power supply can be used if required
Dual-speaker driver design – low frequency bass driver unit and high-frequency tweeter driver unit.
Provides premium sound quality, enhances the audience experience.
Support ZYCOO BM11 Mic w/ Push-to-Talk Button, easy connection with the BM11 to achieve the talk-
back functionality.
ZYCOO IP Audio Center auto provisioning support, large-scale installations (local or remote) will be
extremely easy and time-saving.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
5.25" woofer unit + 1" tweeter unit |
|
Sensitivity |
85dB/1m/1W |
|
Max sound pressure level |
100dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 15W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 90°V 30m² |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE+ or External 24V 2A DC |
|
Casing |
Surface-treated steel |
|
Color |
White |
|
Weight |
3.45KG (7.6lb) |
|
Dimension |
φ240 x 210 mm (7.2 x 6.3 in) |
|
Mounting method |
High strength anti-corrosion clamps |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
