Product Details:
|
| Rated Power: | 8Ω 15W | Color: | White |
|---|---|---|---|
| Casing: | Surface-treated Steel | Coverage Pattern: | 90°H 90°V 30m^2 |
| Max Sound Pressure Level: | 100dB | Sensitivity: | 85dB/1m/1W |
| Weight: | 3.45KG (7.6lb) | Dimension: | φ240 X 210 Mm (7.2 X 6.3 In) |
| Mounting Method: | High Strength Anti-corrosion Clamps | ||
| High Light: | Surround Flush Mount Home Speakers,Flush Mount Home Speakers Steel Casing,Surround flush mount surround speakers |
||

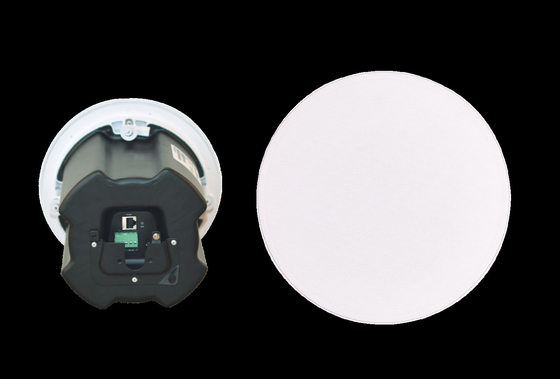

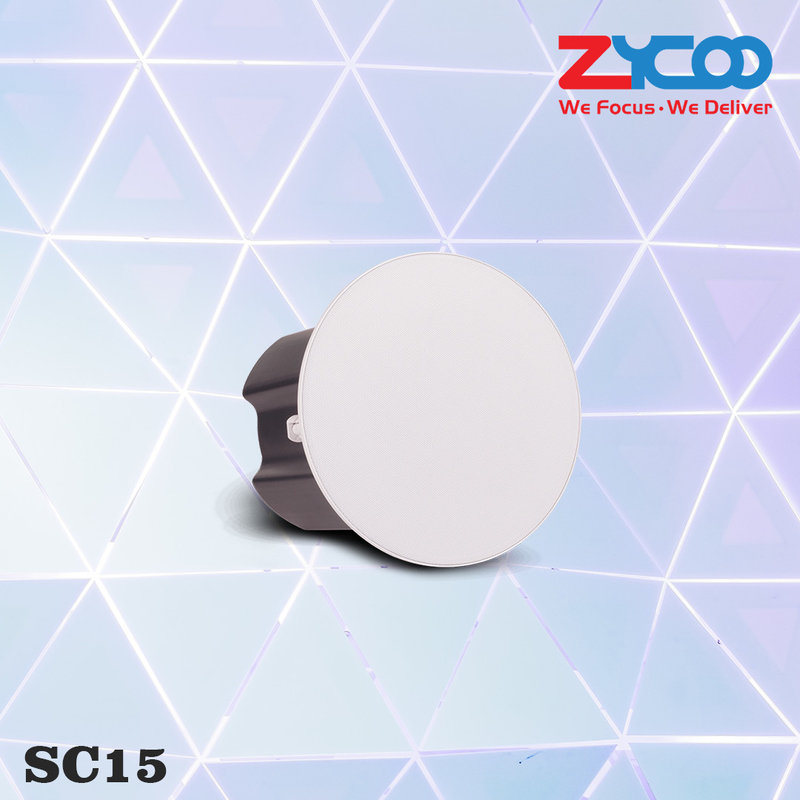

ZYCOO SC15 is a compact high-performance SIP-enabled ceiling speaker which can be used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience.
Support Multicast and Peer-to-Peer (P2P) to share data between devices without a central server while
the devices use under the same local network.
Built-in amplifier with local or server controlled volume output level, SC15 guarantees full and consistent
coverage and also the audio comfort and the flab.
SC15 supports three lines SIP accounts, in which users may register the endpoint in more than one
system for achieving different functionality purposes.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
5.25" woofer unit + 1" tweeter unit |
|
Sensitivity |
85dB/1m/1W |
|
Max sound pressure level |
100dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 15W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 90°V 30m² |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE+ or External 24V 2A DC |
|
Casing |
Surface-treated steel |
|
Color |
White |
|
Weight |
3.45KG (7.6lb) |
|
Dimension |
φ240 x 210 mm (7.2 x 6.3 in) |
|
Mounting method |
High strength anti-corrosion clamps |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
QA
Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com
