Product Details:
|
| Rated Power: | 8Ω 15W | Color: | White |
|---|---|---|---|
| Casing: | Surface-treated Steel | Grille: | Surface-treated Metal Mesh Plate |
| Coverage Pattern: | 90°H 90°V 30m2 | Max SPL: | 100dB |
| Sensitivity: | 85dB/1m/1W | Weight: | 3.45KG (7.6lb) |
| Dimension: | φ240 X 210 Mm (7.2 X 6.3 In) | Mounting Method: | High Strength Anti-corrosion Clamps |
| High Light: | Enabled IP PA Speaker System,Ip Ceiling Speakers PoE Supported,SIP poe ceiling speakers |
||

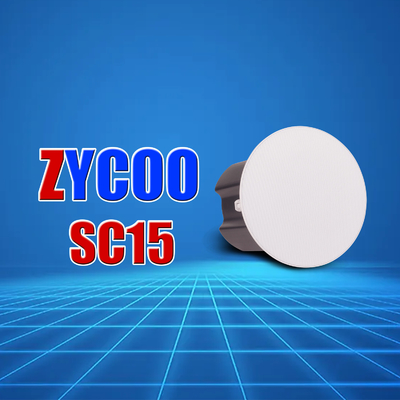

Indoor Ceiling IP Speaker with PoE supported
ZYCOO SC15 is a compact high-performance SIP-enabled ceiling speaker which can be used for SIP paging, notification/tone broadcasting, and streamed high-definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
5.25" woofer unit + 1" tweeter unit |
|
Sensitivity |
85dB/1m/1W |
|
Max sound pressure level |
100dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 15W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 90°V 30m2 |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE IEEE802.3at or DC24V-2A |
|
Casing |
Surface-treated steel |
|
Grille |
Surface-treated metal mesh plate |
|
Color |
White |
|
Weight |
3.45KG (7.6lb) |
|
Dimension |
φ240 x 210 mm (7.2 x 6.3 in) |
|
Mounting method |
High strength anti-corrosion clamps |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
