Product Details:
|
| Network Interface: | 10/100Mbps, Support PoE IEEE 802.3af/at | Power Input:: | PoE IEEE 802.3 At Or DC 12V-2A |
|---|---|---|---|
| Casing: | Corrosion-resistant Aluminum | Color: | Silver |
| Weight: | 500g | Dimension: | 162mm*100mm*44mm |
| Mounting Method: | Suace Or Flush Mounted | ||
| High Light: | SIP Based PoE Intercom,Ei Series SIP PoE Intercom,Corrosion Resistant SIP PoE Intercom |
||

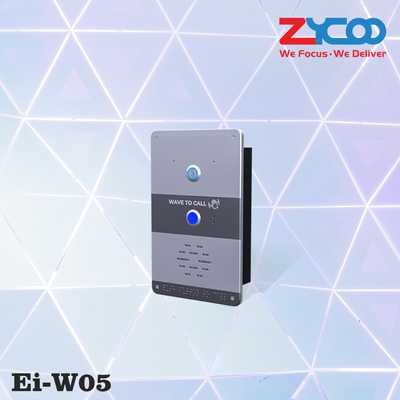

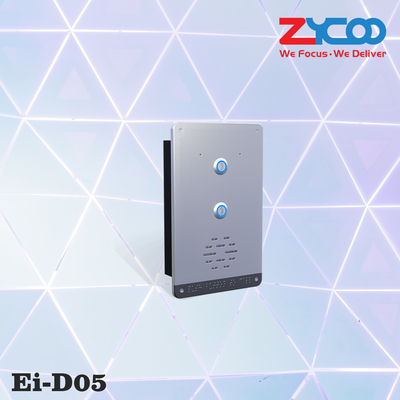

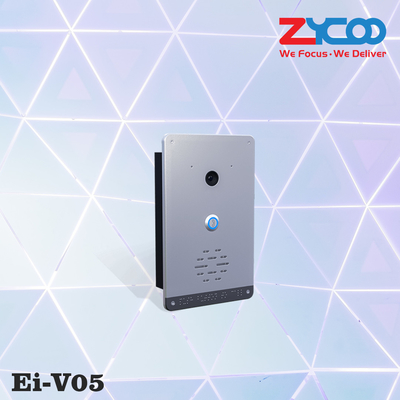

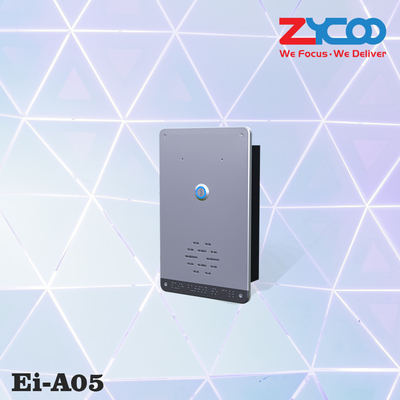

Ei Series Safety Video SIP Based PoE Intercom Four Models Corrosion Resistant Aluminum Casing Gesture Activation

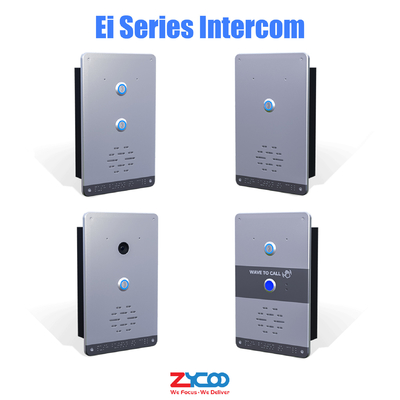

Ei Series Safety Intercom
Overview
Specifications
| Ei-V05 | Ei-A05/Ei-D05/Ei-W05 | |
| Speaker | ||
| Drive Unit | Φ40 full frequency drive unit | |
| Sensitivity | 96±3dB/1M/1W | |
| Distortion | <1% | |
| Amplifier | 5W Single Channel D-class | |
| Rate Power | 8Ω 5W | |
| Frequency Range | 100Hz – 20KHz | |
| Acoustics | Mono | |
| Microphone | ||
| Microphone | -36±2 dB | |
| Audio Compression | ||
| Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus | |
| Music Streaming | MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or stereo | |
| Video | ||
| Camera | 1920*1080@20fps, 1280*720@25fps | N/A |
| Video Codec | H.264 | N/A |
| Network | ||
| Network Interface | 10/100Mbps, Support PoE IEEE 802.3at | 10/100Mbps, Support PoE IEEE 802.3af/at |
| Protocols | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP,RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH | |
| Administration | ||
| Configuration | Web interface or auto provisioning server | |
| Provisioning method | MQTT IoT Protocol | |
| Mechanical Properties | ||
| Memory | 128MB RAM, 256MB Flash | |
| Power Input | PoE IEEE802.3 at or DC 12V-2A | PoE IEEE802.3 af/at or DC 12V-1A |
| Material | Corrosion-resistant aluminum | |
| Color | Sliver | |
| Weight | ||
| Dimension | 162*100*44(mm) | |
| Mounting Methods | Surface or Flush mounted | |
| Environmental | ||
| Installation | Indoor/Outdoor | |
| Operating Temperature | -20℃ - 50℃ (-4℉ - 122℉) | |
| Storage Temperature | -40℃ - 70℃ (-40℉ - 158℉) | |
| Humidity | 10% - 95% RH Non-condensing | |
| Approvals | ||
| Approvals |
EN IEC 62368-1:2020+A11:2020 FCC Part 15B |
|
